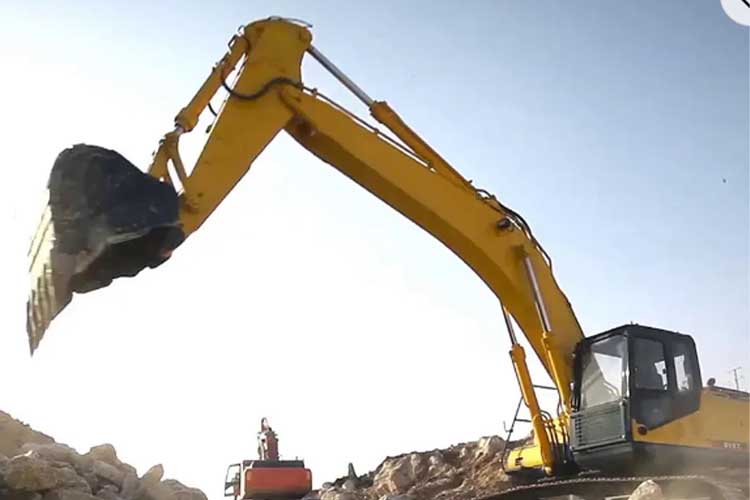

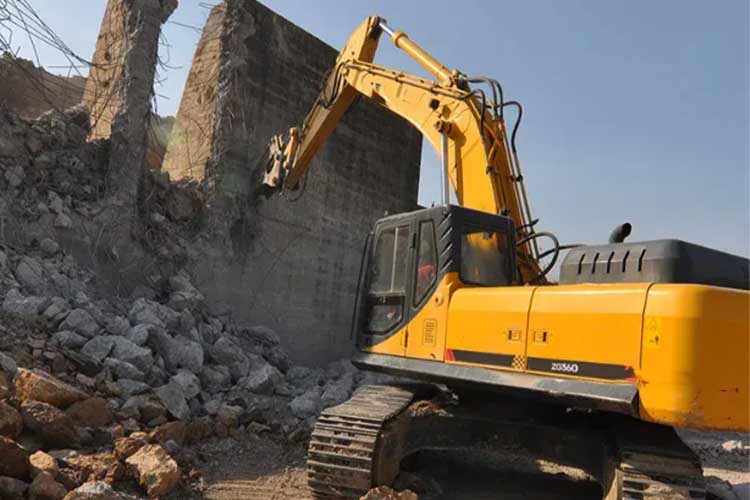

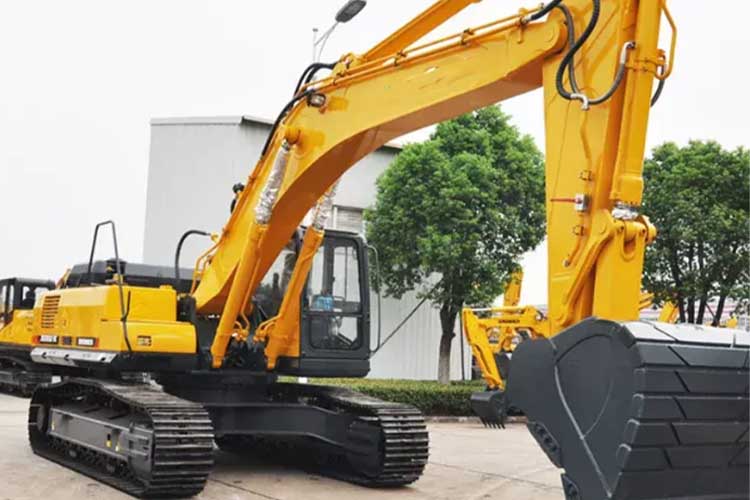

13.5T large crawler excavator from china

Engine: KUBOTAD

Source factory, can accept OEM

Power /Rotation speed: 73/2000(KW/rmp)







Contact:

whatsapp:00 86 18668999901

E-mail: sunny@hoclshine.com



  Contact Now
Product Details

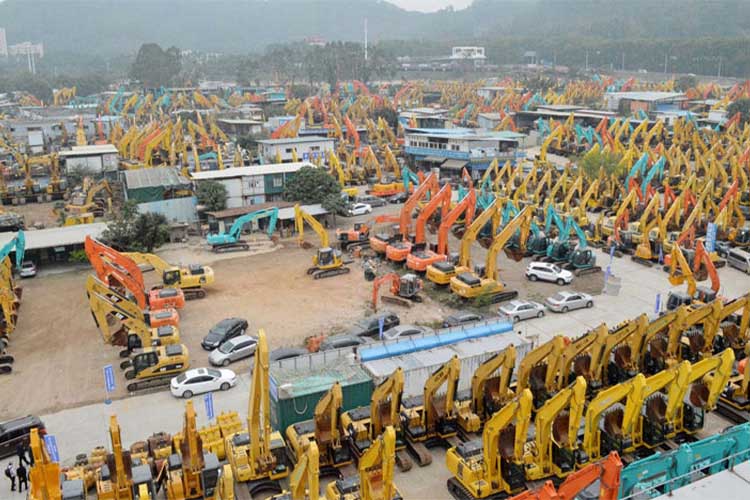

FACTORY STRENGTH



Adhering to the "quality first, reputation first" for the purpose, with our customers to establish a good relationship of cooperation. At present, the main products are excavator series, truck crane series, scraping machine series. The company to heavy industry as the main body, to revitalize the national heavy industry field as the goal, with the strength of the cast brand, the integrity of development, the use of advanced production technology, the establishment of a perfect quality assurance system, to the full hydraulic excavator as the leading products, independent development and production of suitable for the national conditions of high configuration, low price, cost-effective quality construction machinery hydraulic products.

Product Parameter


                                                                                             ENGINE

Tire model

-

Make

KUBOTA


Power /Rotation speed

73kw/2000rpm



                                                                         PERFORMANCE PARAMETER

Standard Bucket capacity

0.6m³

System pressure

32Mpa

Maximum Grade ability

30°

Maximum Bucket digging force

91KN

Maximum Arm digging force

55KN


                                                                                  MACHINE SIZE

Overall dimension (L*W*H)

7635mm*2500mm*2750mm

Height of cabin

2750mm

Track length on ground(Axle base)

2950mm

Track gauge

2000mm

Minimum Ground clearance

400mm

Swing radius at tail

2340mm


                                                                                   WORKING RANGE

Maximum Digging height

8540mm

Maximum Dumping height

6125mm

Maximum Digging depth

5095mm

maximum digging radius

8000mm

Maximum Vertical digging depth

4650mm

Minimum swing radius

2445mm

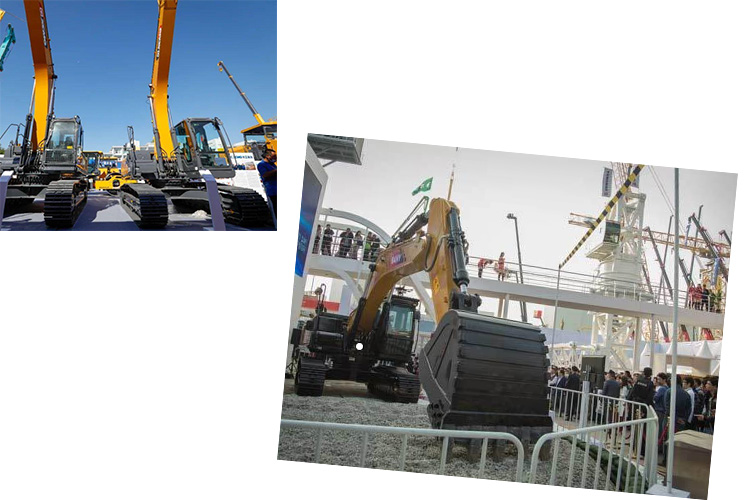

Exhibition and product needs



• The bucket cutting plate is made of special wear-resistant steel plate, suitable for heavy duty operation requirements, equipped with wear-resistant bucket teeth, side teeth, improve the performance of the machine.

• Use thickened steel plate and add side reinforcement plate to improve wear resistance;

• Using flat-bottomed buckets, the finishing surface is neat and flat during leveling operations.

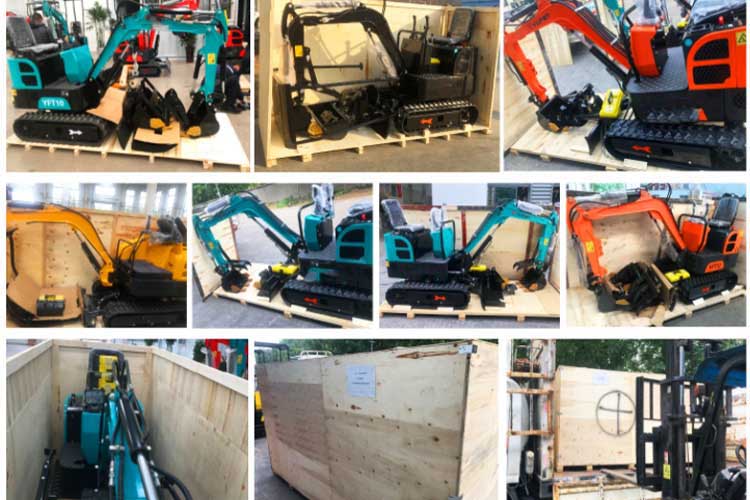

Packaging and logistics
